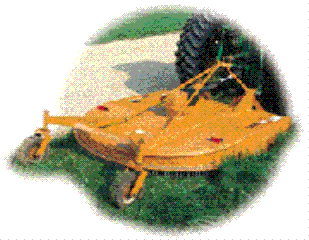

95277 - Woods Brushbull 8400X
(Woods Brushbull Heavy Duty Series)

Price: £POA
Brochure/Equipment photo

The Woods BrushBull line of heavy duty cutters is designed and manufactured especially for the punising conditions associated with the agricultural, municipal and highway maintence industries. Built on the woods reputation for rugged, reliability and backed by quality service, our heavy dury Brushbull cutters are a solid choice for farmers, road commissioners and contractors.*New pedestal mount 150 horsepower gearbox.*Heavy Duty Category 5 drives.*New four-plate, high capacity slip clutches.*Woods exclusive quick change blade pins.*Flexable three-point hitch design.*Cutting width 84 inches.*Transport width 92.5 inches.*Maximum overall length 128 inches.*Cutting height range.*2-12 inches.*Cutting capacity 4 inches.*Gearbox horsepower 150.*Blade tip speed 16000 FPM.*Blade rotation CCW.*Deck side depth 11.7 inches.*Approx weight 1570 lbs.*Tractor horsepower 65-150.*Tractor PTO speed 540/1000 RPM.*Hitch Category 2 & 3.*Blade dimensions (2) 1/2x4 inches.*Blade composition heat treated alloy steel.*Blade carrier round stump jumper.*Blade pin diameter 1-1/2 inches.*Cutting deck thickness 7 gauge.*Side skirt thickness 1/4 inch.*Tail wheel 5x16 inches.*Driveline Category 5.*Driveline protection four plate slip clutch.*Frame style contoured rear frame with bumper. Slope type deck with full length structural tubing frame. Specifications *Cutting width - 84" *Transport Width - 92.5" *Maximum overall length - 128" *Cutting height range - 2 -12 inches *Gearbox horsepower - 150 *Gearbox output shaft diameter - 2 3/8" *Blade Tip Speed - 16000 FPM *Blade Rotation - CCW *Deck Side Depth - 11.7" *Approx Weight - 1570 lbs *Tractor horsepower - 65 - 150 *Tractor PTO Speed - 540/1000 RPM *Hitch - Category 2 & 3 *Blade dimensions - (2) 1 2/4 inches *Blade compositions - heat treated alloy steel *Blade Carrier = round stump jumper *Blade diameter pin - 1 1/2 inches *Cutting deck thickness - 7 gauge *Side Skirt thickness - 1/4 inch *Tail Wheel - 5x16 inches *Driveline - Category 5 *Driveline Protection - four plate slip clutch


Available Optional Extras/Parts:
Chain Shielding £500
Dual tailwheel c/w 16" laminated tyres £822.00
Check chain for mowing height adjustment £91
We stock and supply a full range of parts for this machine. Please contact our parts department on 08703 210256 for prices and avalibility.
